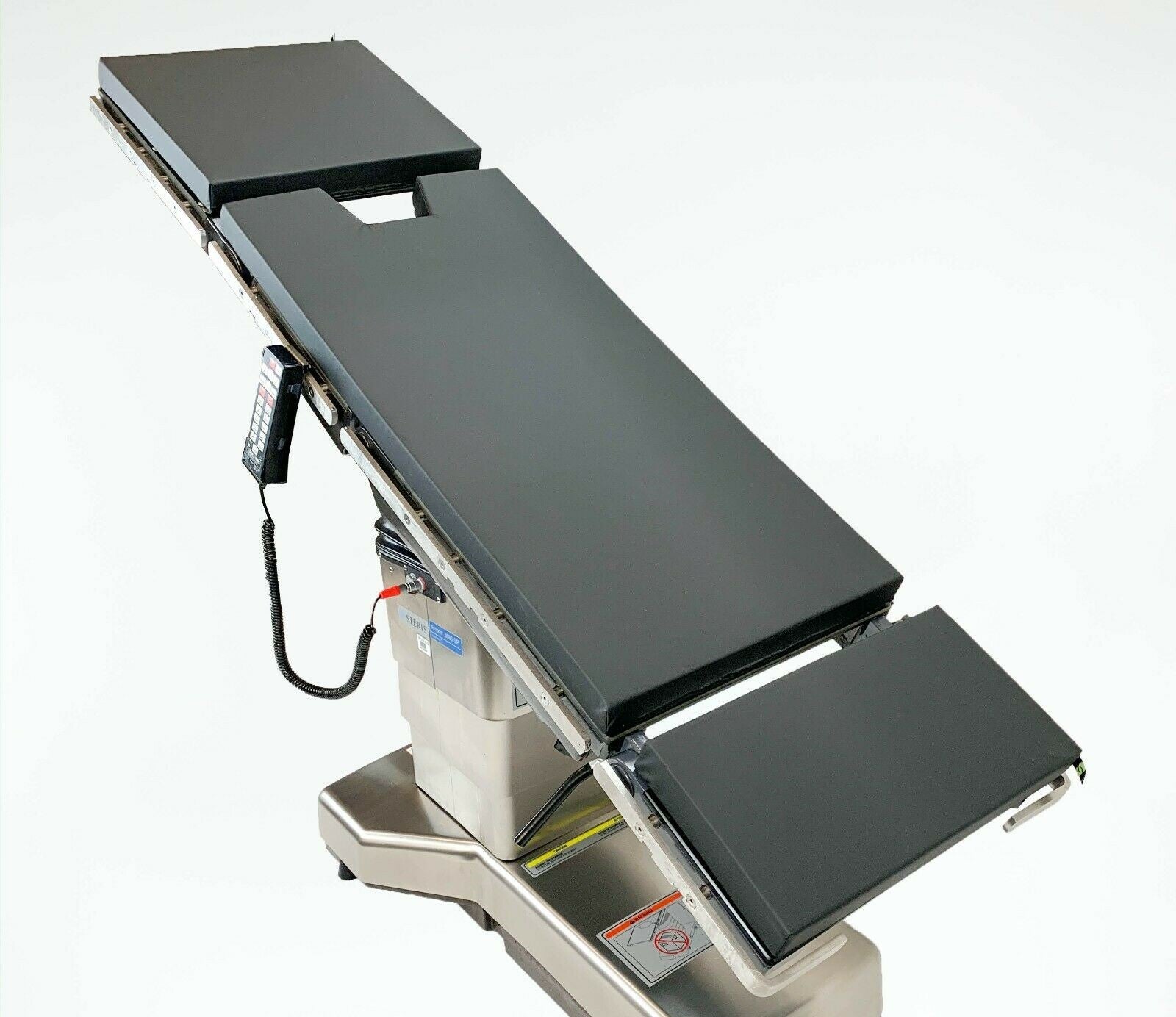

Steris Amsco 3085 SP Features

The Steris 3085 offers complete flexibility for patient positioning. The Steris 3085 is a general surgical table that can be used in a variety of procedures including urology, neurology, pediatrics, bariatrics, ENT, endovascular, and even orthopedics, including skeletal traction, with accessories.

• Automatic conversion functions for reverse patient positioning, regardless of headrest location means commands are automatically interpreted according to the selected orientation.
• Bieri hydraulics provide ultra-precise tabletop articulation for specialties such as urology and neurology. Tabletop movement is smooth and accurate through the full range of positions.
• With the addition of the orthopedic extension, the  surgical table pulls traction and provides positioning flexibility for hip and lower extremity orthopedic procedures.
• T-shaped pedestal design and reverse orientation provide optimal access to the patient by the entire surgical team, regardless of the procedure.

Steris 3085 SP Specifications

Dimensions

• Table Length: 76” (193 cm).
• Table Width: 20” (51 cm).
• Table Height Range: 27” to 44” (68.6-111.8 cm).
• Patient Weight Capacity:
• 1,000 lbs (454 kg) - normal orientation.
• 500 lbs (227 kg) - side tilt & reverse orientation.

Hand Control Features

• Normal/reverse orientation button.
• Return to level button.

Table Movements

• Trendelenburg / Reverse: 25° / 25°.
• Lateral Tilt (left/right): 18° / 18°.
• Head Section: +90° to -90°.
• Back Section:
• +55° to -25° (normal.)
• +80° to -105° (reverse).
• Leg Section:
• +80° to -105° (normal).
• +55° to -25° (reverse).

Upper Body Imaging Area

• Normal orientation (28” x 16”): 448 sq in. (2890 cm²).
• Normal orientation with IA extender (36” x 16”): 576 sq in. (3716 cm²).
• Reverse orientation, head section reversed (45” x 16”): 720 sq in. (4645 cm²).
• Reverse orientation 36” carbon fiber fluoro extention (36” x 20”): 720 Sq in. (4645 cm²).

Lower Body Imaging Area

• Normal orientation (33” x 14”): 462 sq. in. (2980 cm²).
• Normal orientation, head section reversed (45” x 16”): 720 sq. in. (4645 cm²).
• Normal orientation, 36”carbon fiber fluoro extension (36” x 20”): 720 sq in. (4645 cm²).
• Normal orientation with Fem/Pop board (55” x 16”): 880 sq. in. (5678 cm²).
